China Supermarkt Support PDA QR Code Scanner Industrial Mobile Phone Payment PDA factory and manufacturers

Supermarkt Support PDA QR Code Scanner Industrial Mobile Phone Payment PDA

Short Description:

MD711H serial products extend Handheld-Wireless product serials into Android OS 7.0 industrial tablet. Inside the compact tablet terminals, sealing level of IP65 water/dust proof, 1.5m/4.5ft drop survival, ergonomic design, over-molding structure, extremely large internal 10000mAh battery, and 7.0 inch tough Gorilla Glass 3 9H screen are all equipped to ensure performance. Fast 1.3GHz quad-core processor 2GB RAM/16GB ROM and up to 32GB expansion are all designed to boost up experience level.

Send email to us

Product Detail

Product Tags

MD711H (5)
MD711H (6)
MD711H (7)
MD711H (8)

Extraordinary Battery Life
Extremely large internal battery of 10000mAh can ensure long battery in different using environment;

Rugged Ergonomic and Over-molding Design
Over-molding and ergonomic hardware design can satisfy most of the tough environment from different fields;

Extremely Stable Hardware Display
7.0 inch tough Gorilla Glass 3 9H screen can ensure the performance under different tough environment;

Highly Customized Structure
‘All-in-One’ hardware design conception can expand the hardware modules integration based on different project requirements, espcially like UHF+HF, UHF+LF, HF+LF;

Highly Integrated and Preinstalled Application
The highly integrated and preinstalled ScanServer can satisfy most of the solutions obtained from Google Play by the working principle of ‘Plug and Play’;

Quick-Charging
Quick-charging technology can provide the most efficient experience;

Perfect Service
Professional and skillful service invol the whole life cycle can guarantee the stability.

Product parameter

PHYSICAL CHARACTERISTICS
Dimension	208mm(H)x130mm(W)x20mm(D)±2 mm
Weight	Net Weight :1150g (including battery&wrist strap)
Display	7.0 in. TFT-LCD(1280x720)touch screen with backlight
Backlight	LED backlight
Expansions	1 SIM, 1 TF
Battery	Rechargeable li-ion polymer, 3.7V, 10000mAh
PERFORMANCE CHARACTERSTICS
CPU	Cortex A53 1.3GHz quad-core
Operating System	Android 7.0
Storage	2GB RAM, 16GB ROM, MicroSD(max 32GB expansion)
USER ENVIRONMENT
Operating Temp	-20℃ to 50℃
Storage Temp	-20℃ to 70℃
Humidity	5%RH to 95%RH(non-condensing)
Drop Specifications	5ft./1.5 m drop to concrete across the operating temperature range
Sealing	IP65, IEC compliance
ESD	±15kv air discharge, ±8kv direct discharge
DEVELOPMENT ENVIRONMENT
SDK	Handheld-Wireless Software Development Kit
Language	Java
Environment	Android Studio or Eclipse
DATA COMMUNICATION
WWAN	TDD-LTE Band 38, 39, 40, 41 FDD-LTE Band 1, 2, 3, 4, 7, 17, 20;
	WCDMA(850/1900/2100MHz);
	GSM/GPRS/Edge (850/900/1800/1900MHz);
WLAN	2.4GHz/5.8GHz Dual Frequency, IEEE 802.11 a/b/g/n
WPAN	Bluetooth Class v2.1+EDR, Bluetooth v3.0+HS, Bluetooth v4.0
GPS	GPS(embedded A-GPS), accuracy of 5 m

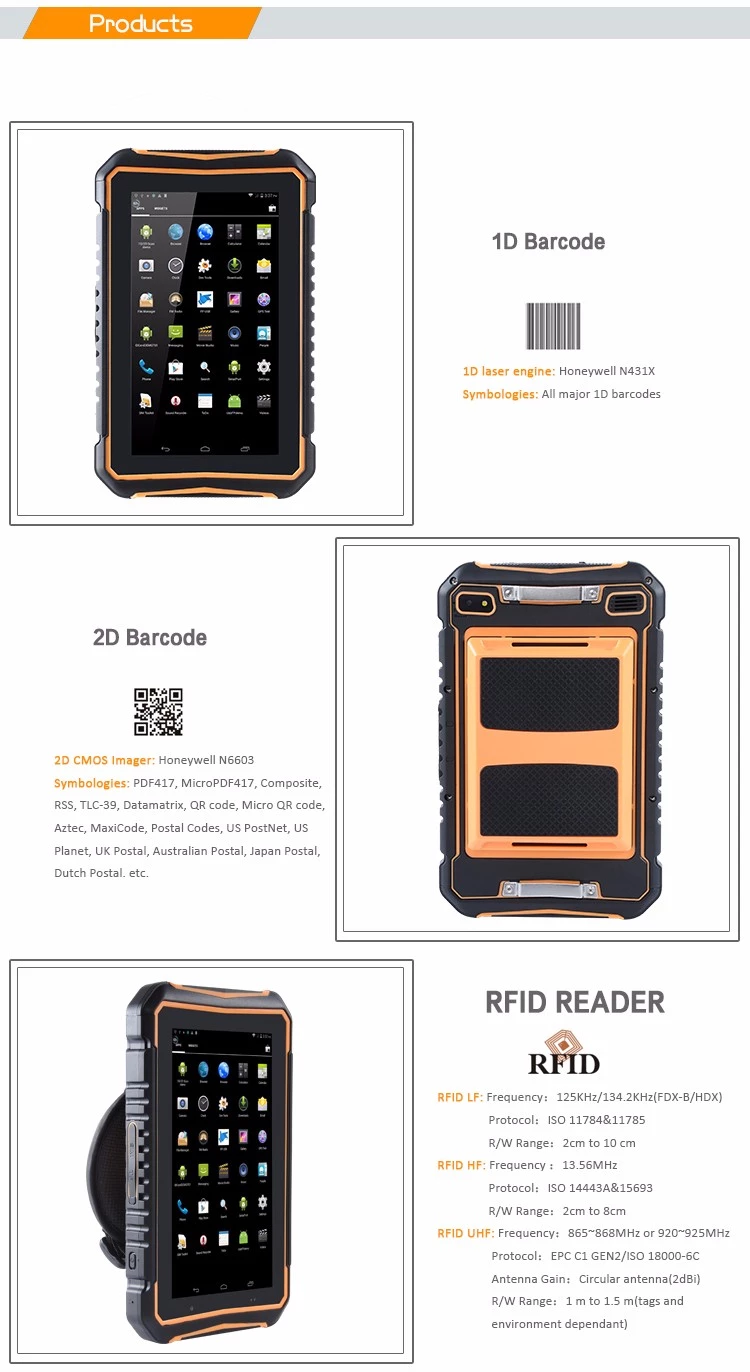

DATA CAPTUER
BARCODE READER(OPTIONAL)
2D barcode	2D CMOS Imager	Honeywell N6603/Newland EM3396
	Symbologies	PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal. etc.
COLOR CAMERA
Resolution	Rear 8.0 megapixel, front 2.0 megapixel
Lens	Auto-focus with LED flash
RFID READER(OPTIONAL)
RFID LF	Frequency	125KHz/134.2KHz(FDX-B/HDX)
	Protocol	ISO 11784&11785
	R/W Range	2cm to 10 cm
RFID HF/NFC	Frequency	13.56MHz
	Protocol	ISO 14443A&15693
	R/W Range	2cm to 8cm
RFID UHF	Frequency	865~868MHz or 920~925MHz
	Protocol	EPC C1 GEN2/ISO 18000-6C
	Antenna Gain	Circular antenna(2dBi)
	R/W Range	1.5 m to2.0 m(tags and environment dependent)

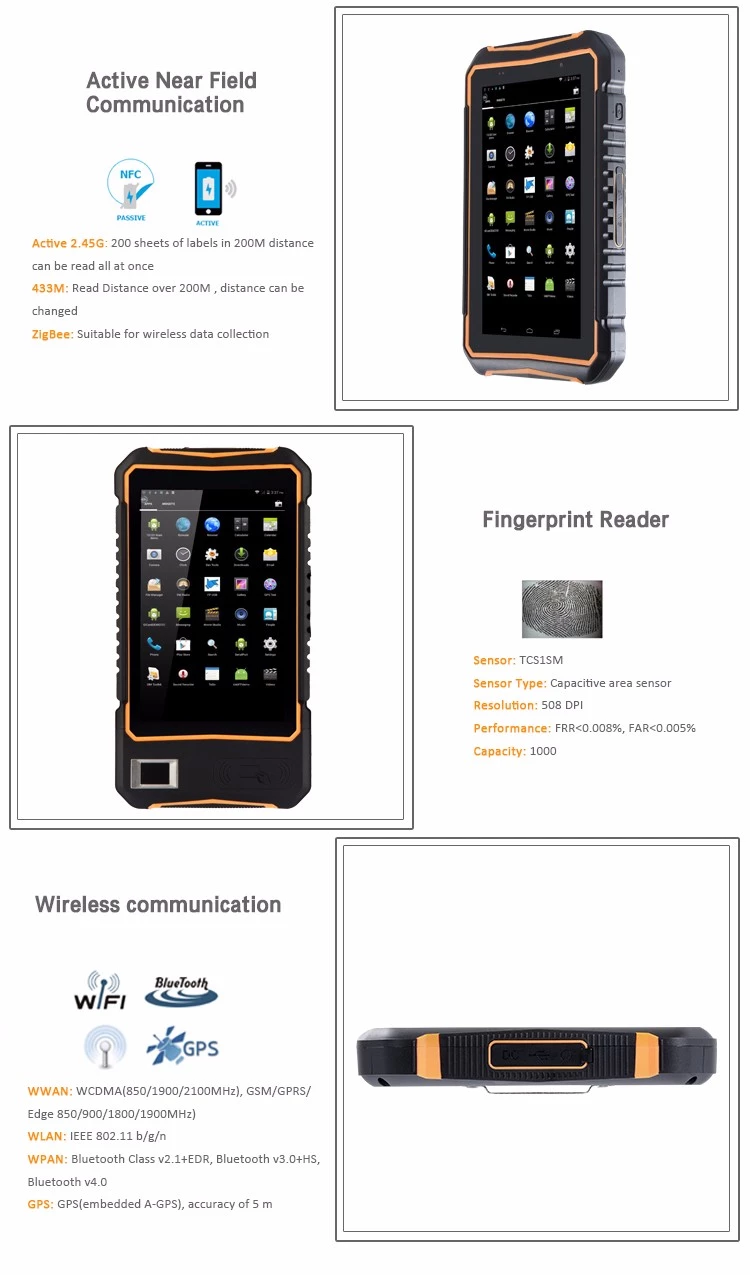

FINGERPRINT READER(OPTIONAL)
Sensor	TCS1xx
Sensor type	Capacitive, area sensor
Resolution	508 DPI
Performance	FRR<0.008%, FAR<0.005%
Capacity	1000

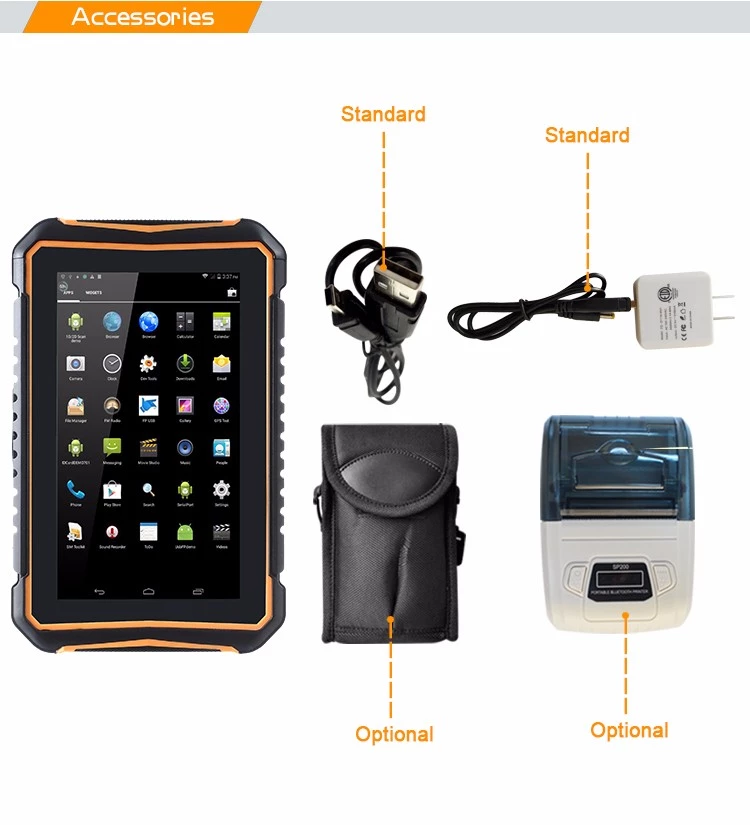

ACCESSORIES
Standard	1xPower Supply
	1xLithium Polymer Battery
	1xDC charging cable
	1xUSB data cable
