ʻO Kina Android Industrial PDA Bluetooth WiFi Handheld RFID Terminal Mobile Computer Barcode Scanner hale hana a me nā mea hana

ʻO ka mea nānā barcode kamepiula kelepona ʻo Android Industrial PDA Bluetooth WiFi Handheld RFID Terminal

ʻO ka Android Industrial PDA Bluetooth WiFi Handheld RFID Terminal Mobile Computer Barcode Scanner Kiʻi i hōʻike ʻia

Wehewehe Pōkole:

Hoʻonui nā huahana serial MD5000C i nā serial huahana Handheld-Wireless i loko o ka Android OS 7.0 me ka kamaʻilio pūnaewele wikiwiki 4G. I loko o ka hāmeʻa lima liʻiliʻi, ʻo ka pae sila o IP65 pale wai/lepo, ke ola hāʻule 1.5m/4.5ft, ka hoʻolālā ergonomic, ke ʻano over-molding, ka ʻenehana hoʻouka wikiwiki, a me ka pale Gorilla Glass 3 5.0 ʻīniha paʻakikī i hoʻolako ʻia e hōʻoia i ka hana. ʻO ka mea hana quad-core 1.3GHz hou loa 2GB RAM/16GB ROM a me ka hoʻonui ʻana a hiki i ka 32GB ua hoʻolālā ʻia e hoʻonui i ka pae ʻike.

E leka uila mai iā mākou

Wehewehena

Nā Lepili Huahana

huahana MDC50003
huahana MDC5000 (2)
huahana MDC5000 (4)
huahana MDC5000 (3)
huahana MDC5000 (1)

Hana Paʻa Loa
Hiki i ka Android 7.0 OS me ka hoʻomanaʻo o 2GB RAM/16GB ROM ke hāʻawi i ka ʻike maʻamau kiʻekiʻe loa

Kamaʻilio ʻIkepili Wikiwiki
ʻO ka ʻinikua pālua o ka pūnaewele wikiwiki kiʻekiʻe 4G a me ka pūnaewele WIFI pālua-alapine hiki ke hōʻoia i ka kamaʻilio ʻikepili manawa maoli ma nā ʻano hoʻohana like ʻole;

Hoʻolālā Ergonomic a me Over-molding paʻa
Hiki i ka hoʻolālā lako over-molding a me ergonomic ke hoʻomāʻona i ka hapa nui o ke kaiapuni paʻakikī mai nā ʻano like ʻole;

Hōʻikeʻike Lako Paʻa Loa
Hiki i ka pale Gorilla Glass 3 9H 5.0 ʻīniha ke hōʻoia i ka hana ma lalo o nā ʻano ʻano paʻakikī like ʻole;

ʻAno i hoʻopilikino ʻia
Hiki i ka manaʻo hoʻolālā lako 'All-in-One' ke hoʻonui i ka hoʻohui ʻana o nā modula lako e pili ana i nā koi papahana like ʻole, ʻoi aku hoʻi e like me UHF+HF, UHF+LF; HF+LF;

Hoʻouka wikiwiki
Hiki i ka ʻenehana hoʻouka wikiwiki ke hāʻawi i ka ʻike kūpono loa;

Hana Kūpono Loa
ʻO ka lawelawe ʻoihana a me ka mākaukau e komo ana i ke ola holoʻokoʻa hiki ke hōʻoia i ke kūpaʻa.

Palena huahana

NĀ ʻANO KINO
Ana	170mm(H)x85mm(W)x23mm(H)±2 mm
Kaumaha	Kaumaha ʻupena: 370g (me ka pākaukau a me ke kaula lima)
Hōʻike	Pale paʻi Gorilla Glass 3 9H 5.0 ʻīniha TFT-LCD (720x1280) me ke kukui hope
Kukui hope	kukui uila LED
Nā papa kī	3 mau kī TP, 6 mau kī hana, 4 mau pihi ʻaoʻao
Nā Hoʻonui	2 PSAM, 1 SIM, 1 TF
Pākahiko	ʻO ka polymer li-ion hiki ke hoʻouka hou ʻia, 3.7V, 4500mAh
NĀ ʻANO HANA
CPU	ʻEhā A53 1.3GHz ʻehā-core
ʻŌnaehana Hana	Android 7.0
Ka Waihona	2GB RAM, 16GB ROM, MicroSD (max 32GB ka hoʻonui ʻana)
KAIAO HOʻOHANA
Mahana Hana	-20℃ a i 50℃
Mahana Mālama	-20℃ a i 70℃
ka makū	5% RH a i 95% RH (ʻaʻole condensing)
Nā Kikoʻī Hoʻokuʻu	5 kapuaʻi/1.5 m hāʻule i ka sima ma waena o ka pae mahana hana
Ke sila ʻana	IP65, kūlike IEC
ESD	±15kv hoʻokuʻu ea, ±8kv hoʻokuʻu pololei
KAIAULU HOʻOMOHALA
SDK	Pahu Hoʻomohala Polokalamu Lima-Uea ʻole
ʻŌlelo	Iawa
Kaiapuni	Android Studio a i ʻole Eclipse
KA PĀʻILIʻILI ʻANA I KA ʻIKE
WWAN	Pūʻulu TDD-LTE 38, 39, 40, 41; Pūʻulu FDD-LTE 1, 2, 3, 4, 7, 17, 20;
	WCDMA(850/1900/2100MHz);
	GSM/GPRS/Edge (850/900/1800/1900MHz);
WLAN	2.4GHz/5.8GHz alapine pālua, IEEE 802.11 a/b/g/n
WPAN	Papa Bluetooth v2.1+EDR, Bluetooth v3.0+HS, Bluetooth v4.0
GPS	GPS (i hoʻokomo ʻia ʻo A-GPS), pololei o 5 m
MEA HOʻOPONOPONO ʻIKE

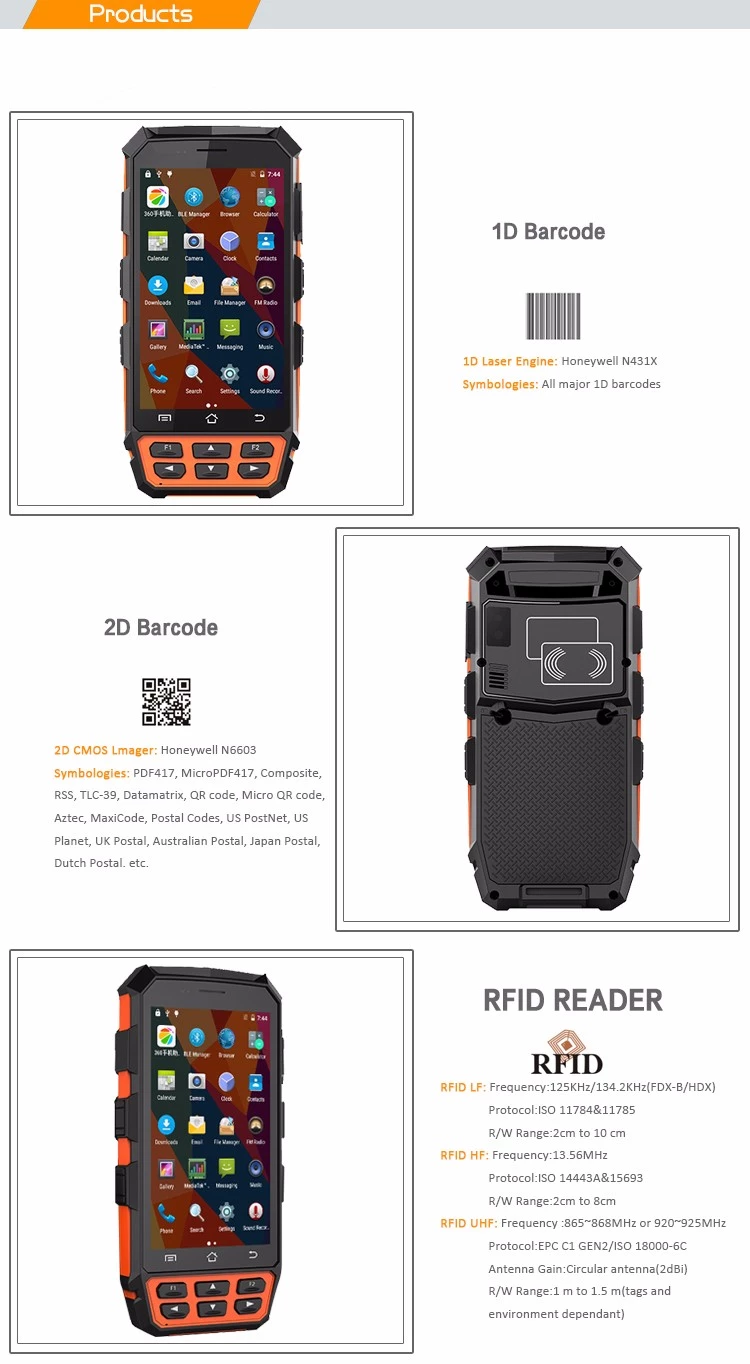

MEA HELUHELU BARCODE (KOHO)
Pākuʻi helu 1D	ʻenekini laser 1D	Hōʻailona SE955
	Nā hōʻailona	Nā barcode 1D nui a pau
Paepae helu 2D	Mea Kiʻi CMOS 2D	Honeywell N6603/Newland EM3396
	Nā hōʻailona	PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Nā Code Leka, US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal. a pēlā aku.
KAMEPA KALA
Hoʻoholo	8.0 megapixel
Aniani	Hoʻoikaika ponoʻī me ka flash LED
MEA HELUHELU RFID (KOHO)
RFID LF	Alapine (frequency)	125KHz/134.2KHz (FDX-B/HDX)
	Palapala Hoʻokele	ISO 11784 a me 11785
	Pae R/W	2 kenimika a 10 kenimika
RFID HF/NFC	Alapine (frequency)	13.56MHz
	Palapala Hoʻokele	ISO 14443A a me 15693
	Pae R/W	2 kenimika a i 8 kenimika
RFID UHF	Alapine (frequency)	865~868MHz a i ʻole 920~925MHz
	Palapala Hoʻokele	EPC C1 GEN2/ISO 18000-6C
	Loaʻa Antenna	Antenna pōʻai (2dBi)
	Pae R/W	1 m a 1.5 m (e pili ana i nā lepili a me ke kaiapuni)

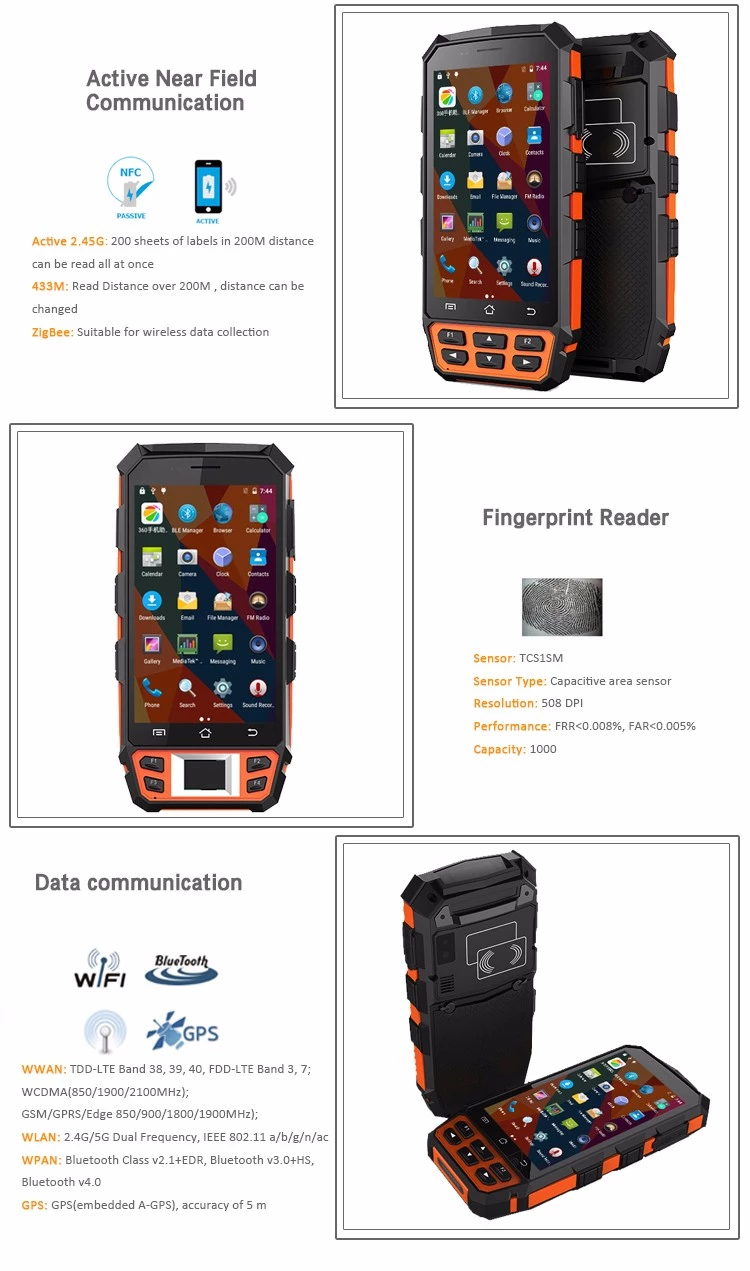

MEA HELUHELU MANAMANA LIMA (KOHO)
Mea ʻike	TCS1xx
ʻAno sensor	ʻIke wahi capacitive
Hoʻoholo	508 DPI
Hana	FRR<0.008%, FAR<0.005%
Ka mana	1000
PALEKANA PSAM (KOHO)
Palapala Hoʻokele	ISO 7816
ʻO Baudrate	9600, 19200, 38400,43000, 56000, 57600, 115200
Māhele	2 mau hakahaka (ʻoi loa)

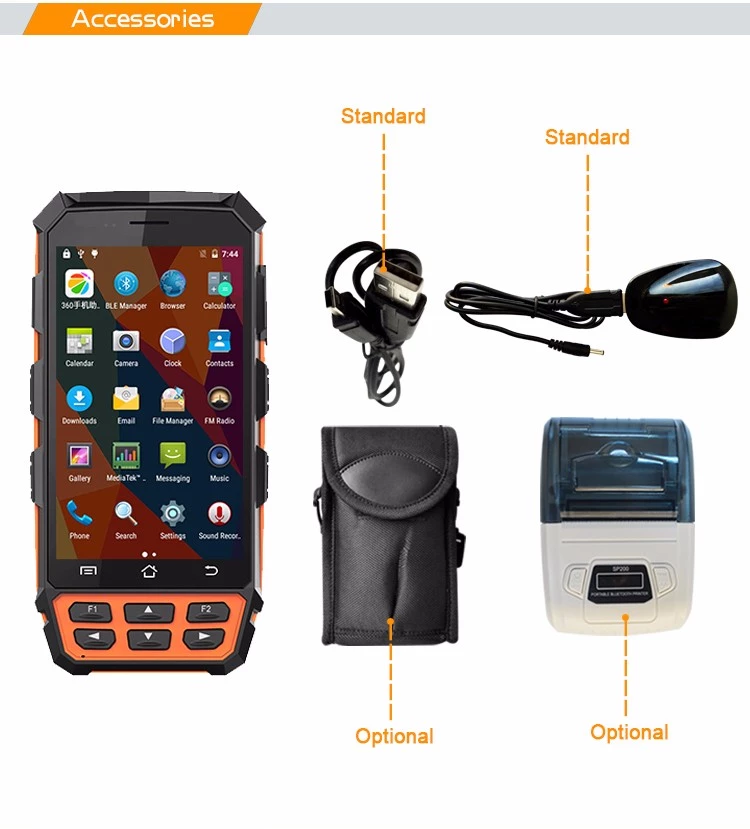

Nā Mea Hoʻohui
Kūlana Maʻamau	1xLako Mana; 1xPākahi Lithium Polymer; 1xUaea hoʻouka DC; 1xUaea ʻikepili USB
Koho	Pahu lawe; Wahi moe
