Cheap rugged 4g 1d 2d android bt handheld laser barcode scanner wharehouse pda terminal

Short Description:

MD5100C serial products extend Handheld-Wireless product serials into Android OS 7.0 with 4G high speed network communication with pistol grip. Inside the compact handheld device, sealing level of IP65 water/dust proof, 1.5m/4.5ft drop survival, ergonomic design, over-molding structure, quick- charging technology, large built-in battery of 8100mAh, and 5.0 inch tough Gorilla Glass 3 9H screen are all equipped to ensure performance. Latest 1.3GHz quad-core processor 2GB RAM/16GB ROM and up to 32GB expansion are all designed to boost up experience level.


Product Detail

Product Tags

1

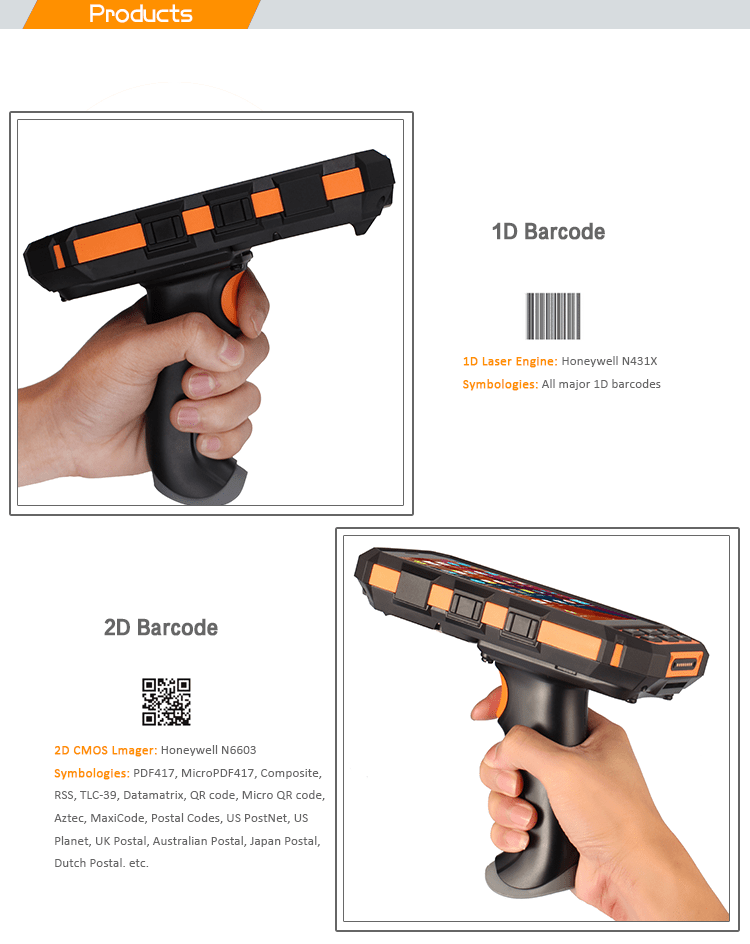

9@L)YR4ZGV~6LD@28@CHA3W
KNZ2DH(1NZ~O~NA]LYI1PKK
Cheap rugged 4g 1d 2d android bt handheld laser barcode scanner wharehouse pda terminal (1)
2
Cheap rugged 4g 1d 2d android bt handheld laser barcode scanner wharehouse pda terminal (3)
Cheap rugged 4g 1d 2d android bt handheld laser barcode scanner wharehouse pda terminal (5)
Cheap rugged 4g 1d 2d android bt handheld laser barcode scanner wharehouse pda terminal (2)
Cheap rugged 4g 1d 2d android bt handheld laser barcode scanner wharehouse pda terminal (4)

Extremely Stable Performance
Android 7.0 OS with memory of 2GB RAM/16GB ROM can provide the highly standard experience

High Speed Data Communication
Double insurance of 4G high Speed network and dual-frequency WIFI network can ensure the real-time data communication in different using environment;

Rugged Ergonomic, Over-molding Design with Extremely Stable Hardware Display

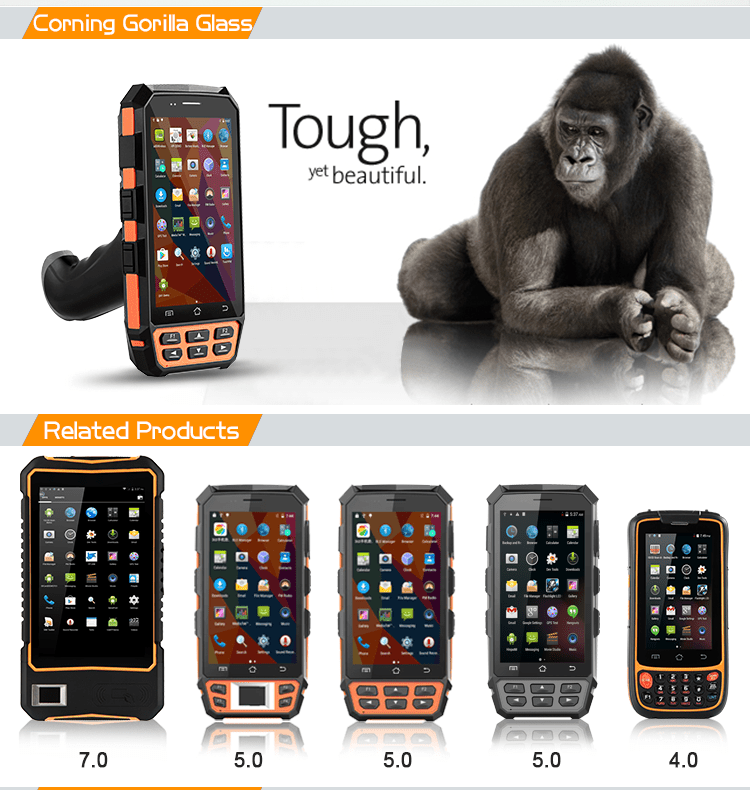

Over-molding, ergonomic hardware design and 5.0 inch tough Gorilla Glass 3 9H can satisfy most of the tough environment from different fields;

High Efficiency Operating Style

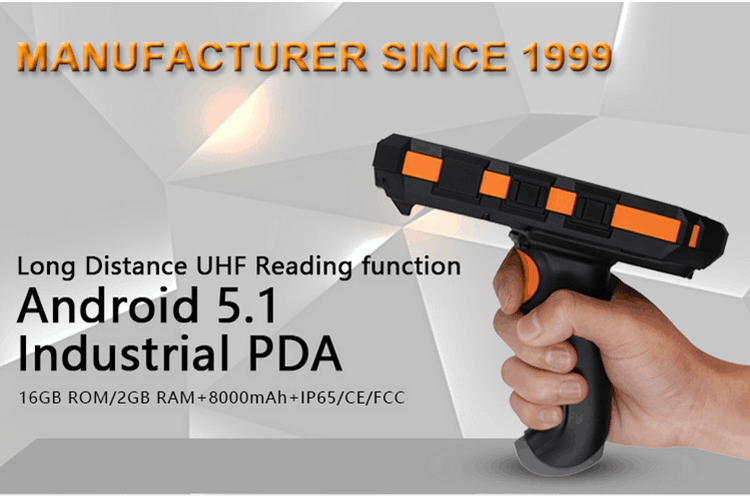

Mounted pistol grip with built-in battery of 8100mAh can ensure the high efficiency in outdoors environments;

High Accuracy and Long Reading Distance
Optional ThingMagic/R2000 UHF Reader can guarantee the high reading accuracy and long reading distance;

Highly Customized Structure
‘All-in-One’ hardware design conception can expand the hardware modules integration based on different project requirements, especially like UHF+HF, UHF+LF; HF+LF;

Quick-Charging
Quick-charging technology can provide the most efficient experience;

Perfect Service
Professional and skillful service invol the whole life cycle can guarantee the stability.

Product parameter

SPECIFICATIONS
PHYSICAL CHARACTERISTICS
Dimension 170mm(H)x85mm(W)x23mm(D)±2 mm
Weight Net Weight :480g (including battery&wrist strap)
Display 5.0 inch Gorilla Glass 3 9H TFT-LCD(720x1280)touch screen with backlight
Backlight LED backlight
Keypads 3 TP keys, 6 function keys, 4 side buttons
Expansions 2 PSAM, 1 SIM, 1 TF
Battery Rechargeable li-ion polymer, 3.7V, 8100mAh
PERFORMANCE CHARACTERSTICS
CPU Quad A53 1.3GHz quad-core
Operating System Android 7.0
Storage 2GB RAM, 16GB ROM, MicroSD(max 32GB expansion)
USER ENVIRONMENT
Operating Temp -20℃ to 50℃
Storage Temp -20℃ to 70℃
Humidity 5%RH to 95%RH(non-condensing)
Drop Specifications 5ft./1.5 m drop to concrete across the operating temperature range
Sealing IP65, IEC compliance
ESD ±15kv air discharge, ±8kv direct discharge
DEVELOPMENT ENVIRONMENT
SDK Handheld-Wireless Software Development Kit
Language Java
Environment Android Studio or Eclipse
DATA COMMUNICATION
WWAN TDD-LTE Band 38, 39, 40, 41; FDD-LTE Band 1, 2, 3, 4, 7, 17, 20;
WCDMA(850/1900/2100MHz);
GSM/GPRS/Edge (850/900/1800/1900MHz);
WLAN 2.4GHz/5.8GHz Dual Frequency, IEEE 802.11 a/b/g/n
WPAN Bluetooth Class v2.1+EDR, Bluetooth v3.0+HS, Bluetooth v4.0
GPS GPS(embedded A-GPS), accuracy of 5 m
DATA CAPTUER
BARCODE READER(OPTIONAL)
1D barcode 1D laser engine Symbol SE955
Symbologies All major 1D barcodes
2D barcode 2D CMOS Imager Honeywell N6603/Newland EM3396
Symbologies PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, US PostNet, US Planet, UK Postal, Japan Postal, Dutch Postal. etc.
COLOR CAMERA
Resolution 8.0 megapixel
Lens Auto-focus with LED flash

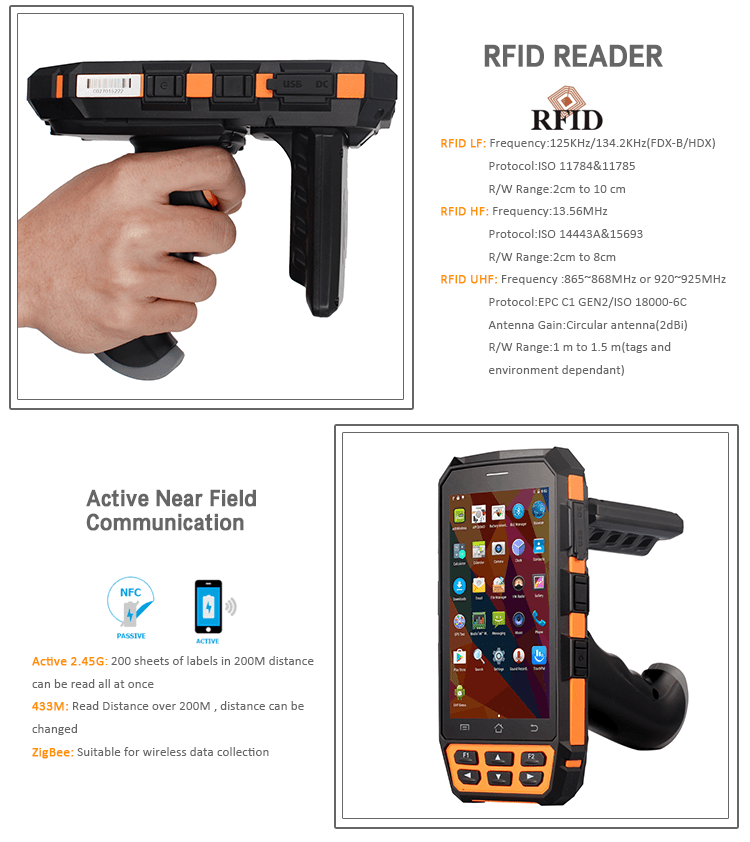

RFID READER(OPTIONAL)
RFID LF Frequency 125KHz/134.2KHz(FDX-B/HDX)
Protocol ISO 11784&11785
R/W Range 2cm to 10 cm
RFID HF/NFC Frequency 13.56MHz
Protocol ISO 14443A&15693
R/W Range 2cm to 8cm
RFID UHF Frequency 865~868MHz or 920~925MHz
Protocol EPC C1 GEN2/ISO 18000-6C
Antenna Gain Circular antenna(3dBi)
R/W Range Impinj R2000: 5m to 7(tags and environment dependent)
ThingMagic M6E Micro: 3m to 4 m(tags and environment dependent)

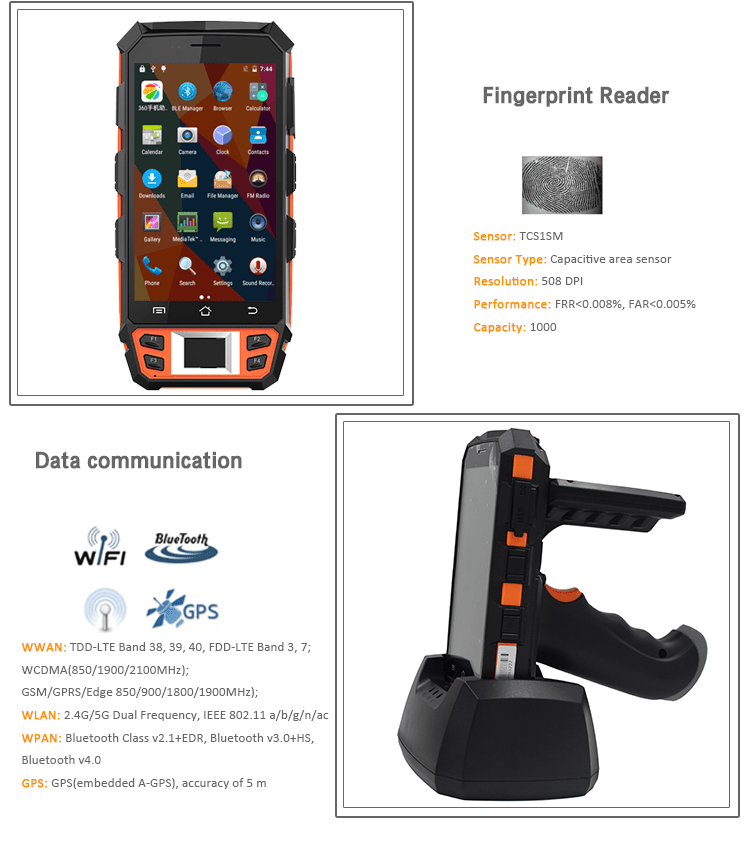

FINGERPRINT READER(OPTIONAL)
Sensor TCS1xx
Sensor type Capacitive, area sensor
Resolution 508 DPI
Performance FRR<0.008%, FAR<0.005%
Capacity 1000
PSAM SECURITY(OPTIONAL)
Protocol ISO 7816
Baudrate 9600, 19200, 38400,43000, 56000, 57600, 115200
Slot 2 slots(maximum)

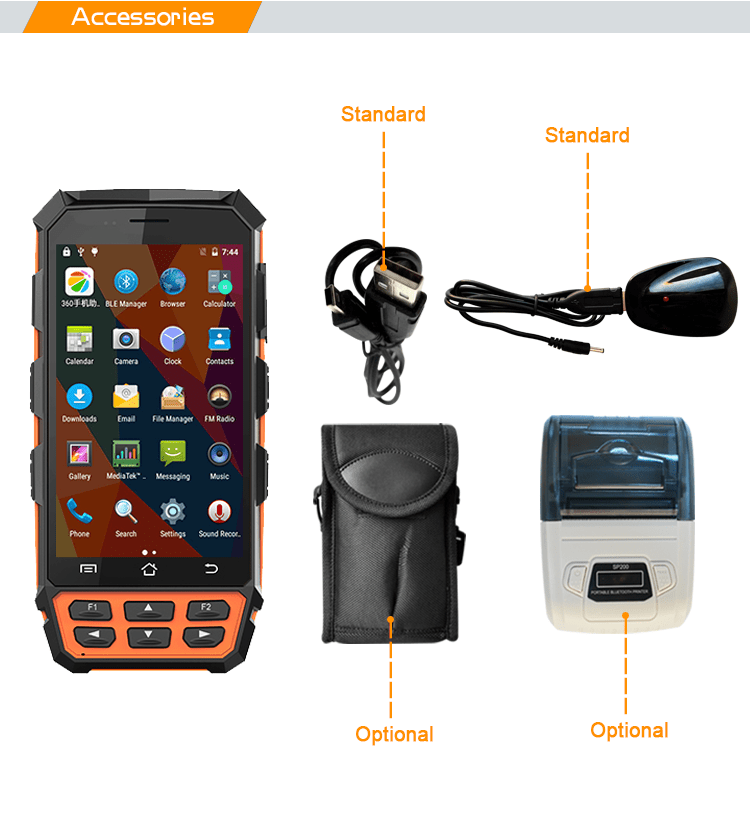

ACCESSORIES
Standard 1xPower Supply; 1xLithium Polymer Battery; 1xDC charging cable; 1xUSB data cable
Optional Cradle
